As the Chinese leading manufacturer of Heavy-duty Modular Trailers, we provided Reliable, Flexible and Cost-effective solutions of Hydraulic Axles Modular Trailers for customers whose business involves transporting loads weighing from 100 ton to over 5,000 ton.

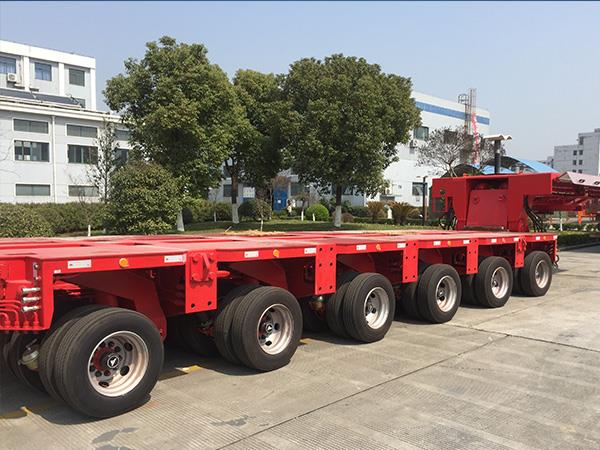

hydraulic axles modular trailers
hydraulic modular trailers
Features
●Fully Compatible original German Goldhofer THP/SL modular trailer
●Length and cross combination multi axle
●Box-shaped center frame with integrated air and hydraulic oil tank
●High point load in the center tube and the closed outer fields
●Front and rear bolt-clutch for longitudinal combinations
●Pendant axle aggregate at swivel head mounted the vehicle frame
●Hydro-pneumatic gas pressure accumulator suspension
●Hose rupture safety valve on all axle aggregates
●Integrated Chassis, hydro-mechanical 2-circuit all wheel steering
●Maximum steering + / – 55° in all ride heights
●Steering in middle 1 pair of integrated steering cylinder in frame
●2-line all-wheel air brakes and spring-loaded parking brake
●Complete 4-way piping for optimum combination of the multi axle trailer
Product Number
Axle Qty | 2 | |
Speed (Km/h) | 5 | 80 |
Maximum Total Mass (t) | 68 | 32.8 |
Curb Weight (t) | 7 | |
Rated Load (t) | 61 | 25.8 |
Axle Load (t) | 34 | 16.4 |
Length (mm) | 3000 | |
Width (mm) | 3000 | |
Height (mm) | 1175±300 | |
Wheelbase (mm) | 1500 | |
Wheel Tread (mm) | 1800 | |
Tire Spec | 215/75R17.5 135/133J | |
Rim Spec | 6.00-17.5 | |
Tire Qty | 16 | |
Wheel Angle | 55° | |
Turn Radius (mm) | 450(inside), 4070(outside) | |
FAQ
Q:How long did you manufacture of this?
A:20+ years
Q:Use 3 D design?
A:Yes
