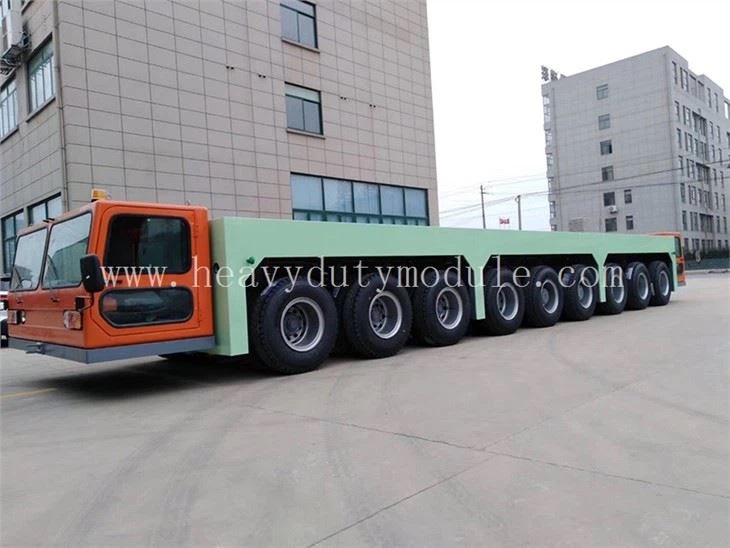

The company produces girder carrier, girder transporter and hydraulic dolly trailer.

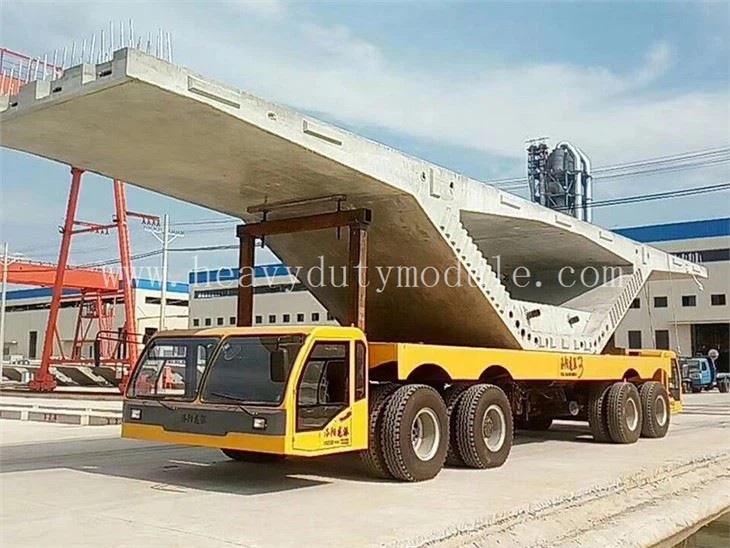

girder carriers with carrying precast bridge capacities of 120T, 160T, 180T, 220T, 250T and 300T that can be used directly to carrier girder to bridge launcher machine and coordinate cross hole of bridge crane, featuring self- propelled, girder construction without limitation of distance, user- friendly operation and maintenance, lower cost of transition and good stability. Girder prefabrication field and bridging construction site with a weakness of long distance and complex traffic, as well as the construction site where is not suitable for track- laying or is in high cost of track- laying, etc. are also applicable. Transporting girder vehicle takes the place of traditional equipment.
Many impressive performances have been achieved in girder transportation with an active presentation recently. She comes from engineering, and will also apply to engineering practice, enabling bridge engineer well- content. In order to help users better operate and maintain, the instruction manual has been compiled in details from aspects of operation and drive, use and maintenance, assembly adjustment and failure analysis, etc.
girder carrier takes the place of traditional equipment. Many impressive performances of transport girder beam have been achieved in girder transportation with an active presentation recently.
She comes from engineering, and will also apply to engineering practice, enabling bridge engineer well- content. In order to help users better operate and maintain, the instruction manual has been compiled in details from aspects of operation and drive, use and maintenance, assembly adjustment and failure analysis, etc. Please read it carefully for grasping the method of operation as soon as possible, rational use and extending service life and giving play to maximum economic benefits in safety. All contents of this manual are the latest information by printing. Your criticism and correction are welcomed, so that t girder carrier can improved.
Model of engine Lijia 4105 Yangchai 4102QB Yiqi Dachai 4110ZY Dachai 6110 Dachai 6110
Power of engine 56kw 72kw 100kw 130kw 170kw
Rated speed of engine 2400r/min 3200r/min 2900r/min 2300r/min 2900r/min
Transmission model Fu +130+ZH120 Fu +131+ZH120 Fu +140+ZH220 Datong 85+ZH220 Datong 85+ZH250
Adaptive slope (Horizontal. Vertical) 4%,3% 3%,2% 4%,3% 4%,3% 4%,3%
Carrying capacity 120T 160T 180T 220T 250T
Dead weight (about) 7.5T 11.5T 13.5T 17.5T 19T
Wheel base 165cm/220cm 195cm/130cm 195cm/130cm 130cm/150cm/130cm 130cm/150cm/130cm
Shaft number 2×2=4 3×2=6 3×2=6 4×2=8 4×2=8
External dimension (active, inactive vehicle) cm (485 / 280) ×285×148 (580 / 490) ×285×150 (630 / 490) ×285×170 (725 / 625) ×285×215 (725 / 625) ×285×215
Tire model 110-20-18 layer 110-20-18 layer 120-20-18 layer 110-20-18 layer 110-20-18 layer
Driving speed (in good road condition) (2.5-200)m/min (2.5-200)m/min (3.5-250)m/min (3.5-300)m/min (3.5-300)m/min
