Heavy Haul Flatbed Trailers

Whether you are hauling construction machinery or materials, one of heavy haul flatbed trailers will make your job easier. Our heavy haul flatbed trailers can withyour heavy-duty haul.
Availability:
Product Description

Whether you are hauling construction machinery or materials, one of heavy haul flatbed trailers will make your job easier. Our heavy haul flatbed trailers can withyour heavy-duty haul.


Features

■ Lightweight construction

■ Large steering angle (55°)

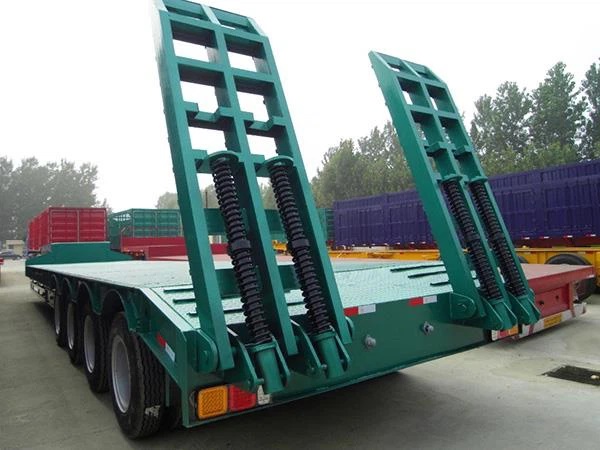

heavy haul flatbed trailers

heavy haul flatbed trailers

heavy-haul-flatbed-semi-trailers

heavy haul flatbed semi trailers


Product Number

Technical Specifications for heavy haul gooseneck trailers


Frame

Capacity 70 ton

Dimensions weight:

Length approx. 14130mm.

Width  approx 2860mm

Max. total height approx.  1888mm.

Max dead weight of heavy haulage trailer should 9 tons approx..

Main Frame and Body :Q690 or equal standard steel.

Traverse cross-section of the body looks like TV shape

With Rear protection bumper


Axles And Suspensions:

one axles 40 tons design capacity axle

mechanical axles and suspensions parts of 40 tons reinforced  .

Type X.E.D

Heavy duty connecting same brand of axles.

Wheelbase between axles 1310 mm.

Trailer connections

Kingpins  Jost Type size 2  inch to be fixed on 16mm – reinforced - skid plates by bolting

Brake system

2 line air brake system

Parking Brake manually operated

ISO type air coupling located at front

2 pneumatic coils hoses for trailer brakes connections.

Air tank capacity 60 liters

Supporting Legs

2 landing gear mechanically actuated with universal flat pads  2 method of actuated mechanical type Jost  with static load 60 tons -  Dynamic load 28 tons.


Electrical System :

Double pole wiring system with separate ground wire with safe sheathing and casing.

2Pcs segment rear/stop/indicator /parking

1 pcs plate numbers lights.

24 Volts complete with stop lights and reflectors .

8 pcs L/H and 8 pcs R/H side lights perfectly wired and Isolated

7 pole connector for trailer at front

Standard Accessories :

2 pcs red triangular reflectors .

2 steel mudguard with support rubber

1 fire extinguisher.

1 traffic triangle reflector..


Finishing & Painting :

Extinguisher surface treatment by machine blasting .

Painting by high solid primer directly on the surface.

Paint Thickness80microns

Another High solid primer.


FAQ

Q:How long did you manufacture of this?

A:20+ years

Q:Use 3 D design?

A:Yes
