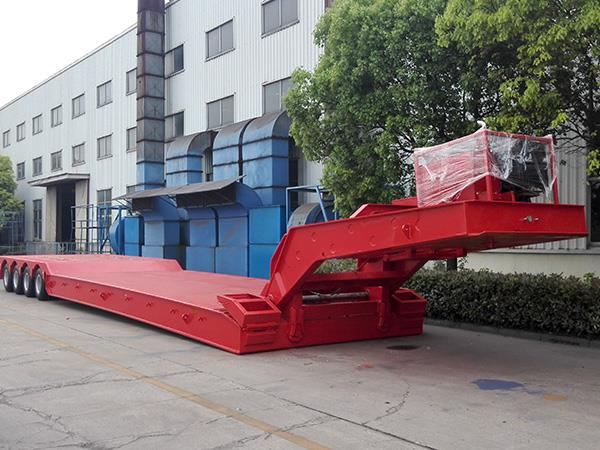

Detachable Gooseneck Trailers or RGN trailer meaning is a gooseneck that can disconnection from the rear platform of the trailer .Equipment can then be loaded safely and easily over the trailer deck from the front end. Hydraulic cylinders are been used for the facilitate of detaching process.
Detachable Gooseneck Trailers
Detachable Gooseneck Lowboy Trailers
Features
(1) all production of removable gooseneck trailer have been tested before shipping
(2) 1 year warranty of all rgn lowboy trailers
(3) 24 online service
(5) Spare parts are available for rng trailer all the time
(6) Regular follow-up to guarantee the trailer in good condition.
Product Number
Type of detachable gooseneck low bed with dolly
General Information:
Dimensions (L x W x H): 22,000*3,000*1,780
Pay load: 80 ton
Dead weight: 22,000
Suspension: argonaut suspension
Sub Frame:
Drums: Air drums in brake system;
Hubs: cast steel 10 studs and oil seals;
Tires: 8.25R216 size, no. of tires + 1 spares depending on axles types;
Axles: 20 tons type,YUEK;
Axle number: 12;
Brakes: dual-line brake system, non-asbestos;
ABS system: None;
oValve: WABCO emergency relay valve
Brake chambers: 30/30 chambers and air-actuated
Springs: 10/10/10
Under Frame:
Main beam: I shape, 500mm height and mild alloy Q460;
Tensile strength 46kg/mm2
Automatic submerged arc welding:
Top flange thickness: 3mm
Bottom flange thickness:3mm
Middle flange thickness: 3mm
Cross beam: U shape and mild alloy Q345b
Tensile strength 34.5kg/2
King pin: 3.5-inch welded type jots
Landing gear: JOST D200
MUD flaps: None
Bumper heavy duty bumper at the end
Appendix: one tool box
spare tire carriers
hydraulics : INTEVA
Other Information:
Effective deck height of lowered platform to ground : 800mm
Expose tire deck:32
Tire size/ tire type /8.25R15 double coin
Thickness of chassis beam: 30mm
Mean beam date: As upon (Automatic submerged arc welding)
Guaranty and warranty: One year
After sales parts support: yes
How to claim: commissioning on site for first after sales service
Spare parts support: Yes
English manuals: Yes
Spare parts manual:Yes
Spare parts cost and list in advance : Yes
Options:
Engine – Chinese, type, brand, specification
JAC 4kw donkey engine
Rear ramp
FAQ
Can i customize the painting and the trailer design?
Yes, we offer customized design and logo .
4. What's the payment term?
30% Deposit with TT, Balance Before shipment by TT or L/C at sight
