The transportation industry is facing the new challenges, because more and more large sized equipments are developed day after day. We combine global advanced technology and local techniques to develop new Hydraulic Multi-axle Trailer (Goldhofer THP/SL copy), the loading capacity range is from 40T to 15000T.

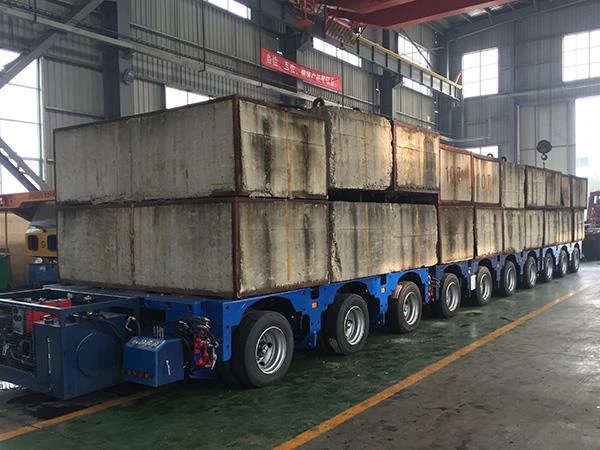

hydraulic multi-axle trailer
hydraulic trailer
Features
●High tensile steel chassis frame of multi axle , durable with high safty factor.
●Hydraulic cylinder suspension.
●Power pack(diesel engine), supply hydraulic pressure for steering and lifting. Air compressor is an option if your prime mover has no air brake.
●Hydraulic/mechanical steering system. Hydraulic pressure came from power pack to steering and lifting jack, drive steering tie rods which tied up with suspension, then realize steering of whole multi axle trailer. When hydraulic pressure functioned in lifting cylinder, hydraulic platform trailer can go up and down.
Product Number
Axle Qty | 6 | |
Speed (Km/h) | 5 | 80 |
Maximum Total Mass (t) | 204 | 98.4 |
Curb Weight (t) | 21 | |
Rated Load (t) | 183 | 77.4 |
Axle Load (t) | 34 | 16.4 |
Length (mm) | 9000 | |
Width (mm) | 3000 | |
Height (mm) | 1175±300 | |
Wheelbase (mm) | 1500 | |
Wheel Tread (mm) | 1800 | |
Tire Spec | 215/75R17.5 135/133J | |
Rim Spec | 6.00-17.5 | |
Tire Qty | 48 | |
Wheel Angle | 55° | |
Turn Radius (mm) | 2000, 9500 |
FAQ
Q:Can combine with original goldhofer trailer?
A:Yes
Q:Export to how many country?
A:40+
