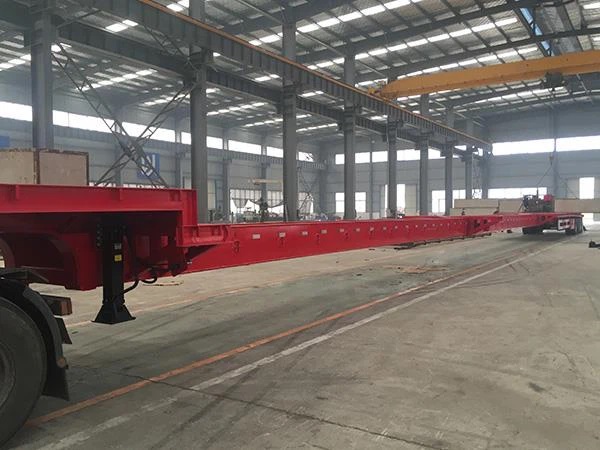

Extendable Platform Trailer extends up to 22 m for carrying indivisible loads. Extendable platforms are multi-functional as they can also be used as a standard platform for longer length indivisible loads. The flexibility of the extendable platform is one of the main benefits for operators.
Highly durable for a long trailer lifespan
Low maintenance and repair
High residual value
505mm height I shaped main longitudinal beam, together with several crossbeams and fore & rear end beams, form a secure spatial frame structure, offering extra strength for more payload and the better anti-twisting force performance.
Shot peening for the complete vehicle---offering much better anti-corrosion and antifatigue performance
Computer controlled underwater plasma cutting, insuring precision dimension of all beams
Strengthened rear crossbeam and tail guard
Monolithic alloy steel main beam
12mm thickness Integrated Cover board
Box type front crossbeam
More use level of small crossbeam to underpin the board
Supergiant symmetrical bearing designed in U.S.A.
WABCO emergency valve
Rack and superstructure are painted in paint drying oven by washing + Sanding +2+1coat Acrylic Paint 110um
Electricity is provided by 7 pin plug from vehicle(24V)
There are necessary traffic advisory and stoplights on both sides
There are backlights, brake lights, license plate lamp, trailer reflectors and orange warning lights on the sides
Q:Did this extendable platform trailer for heavy load?
A:Yes,up to 60 ton
Q:Can this extendable platform trailer for 2 section boom?
A:Yes,up to 3 section boom we can make.
